Bench on Left Range
| NAME | LENGTH | DEPTH |
|---|---|---|
| St Lucia | 3m | 1.3 – 1.55m |
| Castaway | 4m | 1.2 – 1.55m |
| Bimini | 5m | 1.2 – 1.63m |
| Trinidad | 6m | 1.2 – 1.73m |
| Antigua | 7m | 1.2 – 1.83m |
| Grand Antigua | 8m | 1.2 – 1.90m |
2.5m layout example

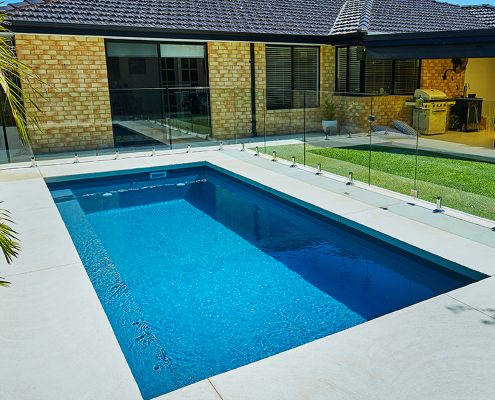

| NAME | LENGTH | DEPTH |
|---|---|---|
| Jumento | 4m | 1.2 – 1.53m |
| Guyana Cay | 5m | 1.2 – 1.63m |
| Galliot Cay | 6m | 1.2 – 1.73m |

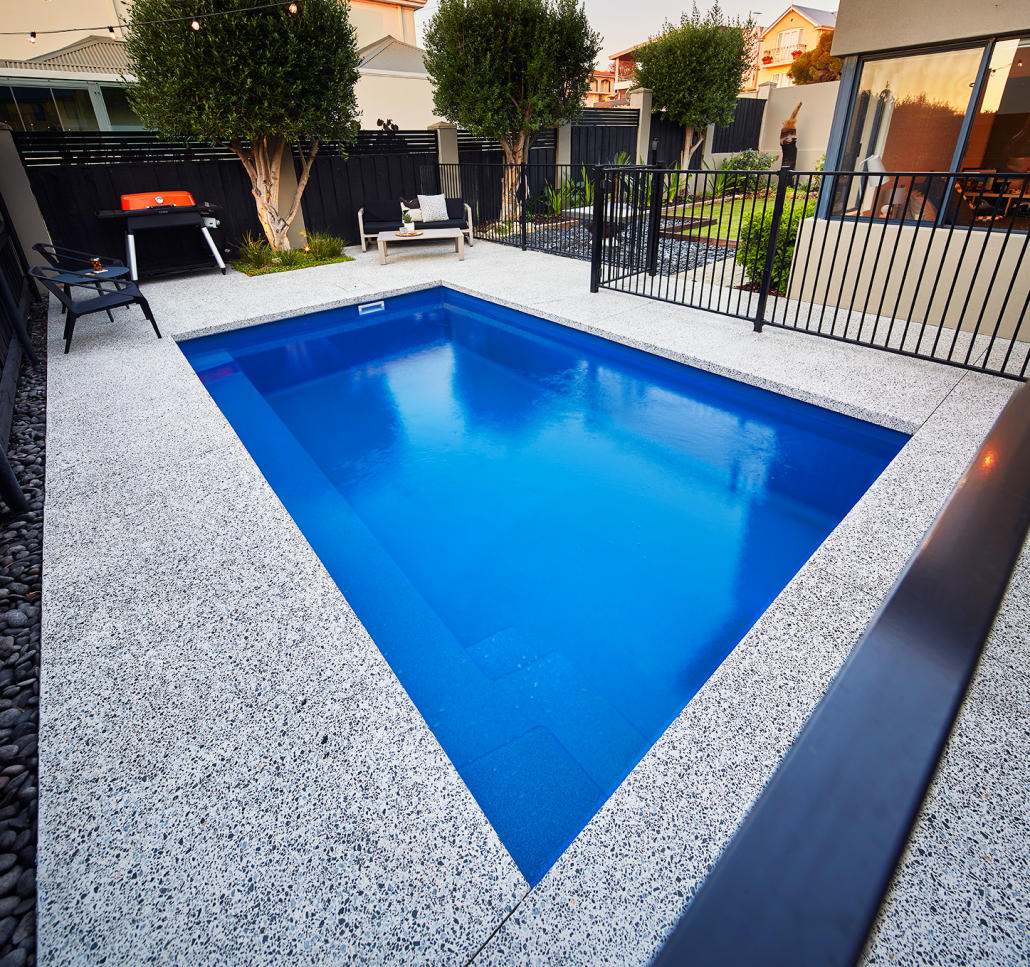

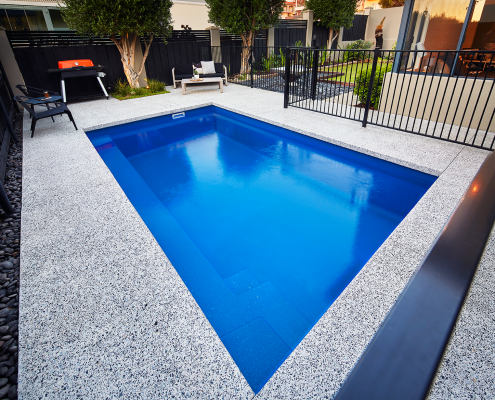

| Barbados | 7m | 1.2 – 1.83m |

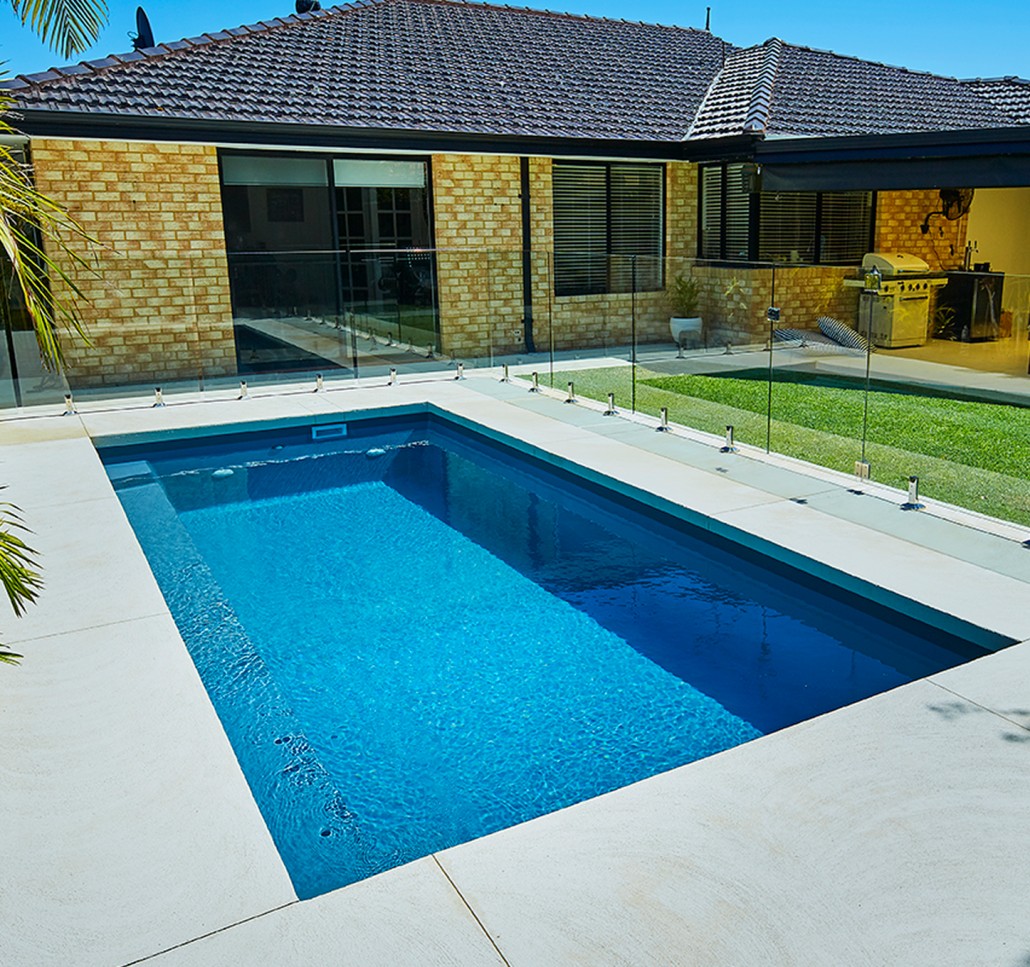

| Grand Barbados | 8m | 1.2 – 1.90m |
| — | — |
3.5m layout example
Specifications
Standard Inclusions
1. Swimming pool with skimmer box and 2 jet returns.
2. Astral 1hp pump/motor (3 year warranty)
3. Astral zx series cartridge filter, 100 sq ft or 150 sq ft (5 year tank warranty)
4. Astral E25 self cleaning salt chlorinator with timeclock (3 year warranty cell and box)
5. Astral multi colour LED pool light (1 year warranty)
6. 500 micron solar blanket/ pool cover
7. Handover kit/ cleaning kit
8. Installation of pool including sand removal and equipment connection (standard access, level site
– added cost if limestone encountered)
9. Delivery of pool within metro area
10. Crane to 32m’s
11. Council and Watercorp approvals
12. Full handover / demonstration of pool and equip including water balance at completion
| Name | Length | Depth |
|---|---|---|
| Inagua | 5m | 1.2 – 1.8m |
| Abaca | 6m | 1.2 – 1.72m |
| Lucaya | 7m | 1.2 – 1.83m |
| Grand Bahama | 8m | 1.2 – 1.90m |
4.0m layout example
Bench on Right Range
| NAME | LENGTH | DEPTH |
|---|---|---|
| Calypso | 4.5m | 1.2 – 1.6m |
| Belize | 5.5m | 1.2 – 1.67m |
| Grand Palms | 6.5m | 1.2 – 1.75m |
| Grenada | 7.5m | 1.2 – 1.85m |
2.5m wide layout example
| NAME | LENGTH | DEPTH |
|---|---|---|
| Crystal Cove | 4.0m | 1.4 – 1.63m |
| Oceans Edge | 5.0m | 1.4 – 1.86m |
| Carribean Breeze | 6.0m | 1.3 – 1.86m |
| Blue Lagoon | 7.0m | 1.2 – 1.86m |
3.2m wide layout example
Specifications
Standard Inclusions
1. Swimming pool with skimmer box and 2 jet returns.
2. Astral 1hp pump/motor (3 year warranty)
3. Astral zx series cartridge filter, 100 sq ft or 150 sq ft (5 year tank warranty)
4. Astral E25 self cleaning salt chlorinator with timeclock (3 year warranty cell and box)
5. Astral multi colour LED pool light (1 year warranty)
6. 500 micron solar blanket/ pool cover
7. Handover kit/ cleaning kit
8. Installation of pool including sand removal and equipment connection (standard access, level site
– added cost if limestone encountered)
9. Delivery of pool within metro area
10. Crane to 32m’s
11. Council and Watercorp approvals
12. Full handover / demonstration of pool and equip including water balance at completion
| NAME | LENGTH | DEPTH |
|---|---|---|
| Tobago 4.5 | 4.5m | 1.18 – 1.56m |
| Panama | 5.5m | 1.2 – 1.68m |
| Tobago | 6.5m | 1.2 – 1.78m |
| Grand Tobago | 7.5m | 1.2 – 1.85m |
3.6m wide layout example
| NAME | LENGTH | DEPTH |
|---|---|---|
| Montego | 5.0m | 1.185 – 1.70m |
| Martinique | 6.0m | 1.15 – 1.90m |
| Montseratt | 7.0m | 1.0 – 1.90m |
| Guadeloupe | 8.0m | 1.0 – 2.0m |
4m wide layout example
Constant Depth Range
| NAME | LENGTH | WIDTH |
|---|---|---|
| 4.3 Courtyard | 4.3m | 2.0m |
| 5.5 Courtyard | 5.5m | 2.0m |
1.2m deep layout example

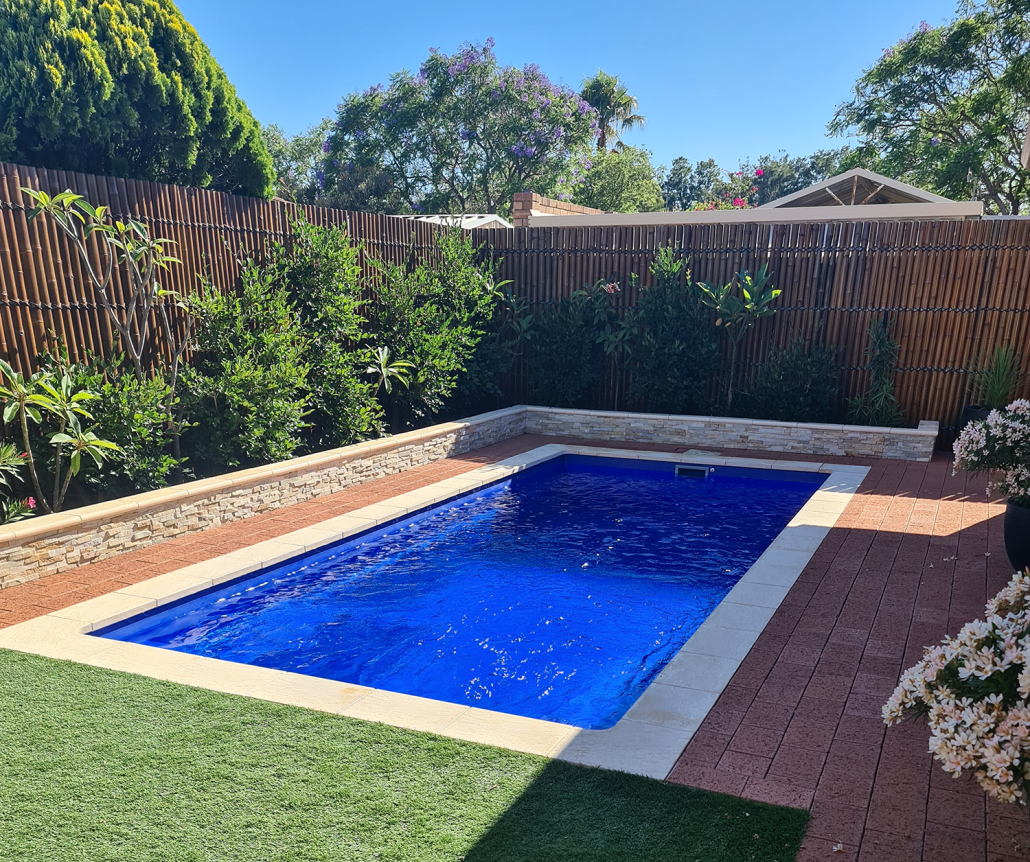

| NAME | LENGTH | WIDTH |
|---|---|---|

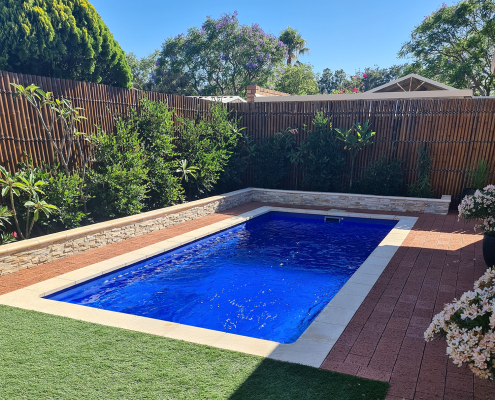

| Aruba Reef 4.5 | 4.5m | 2.5m |
| Aruba Reef 5.5 | 5.5m | 2.5m |
1.35m wide layout example
Specifications
Standard Inclusions
1. Swimming pool with skimmer box and 2 jet returns.
2. Astral 1hp pump/motor (3 year warranty)
3. Astral zx series cartridge filter, 100 sq ft or 150 sq ft (5 year tank warranty)
4. Astral E25 self cleaning salt chlorinator with timeclock (3 year warranty cell and box)
5. Astral multi colour LED pool light (1 year warranty)
6. 500 micron solar blanket/ pool cover
7. Handover kit/ cleaning kit
8. Installation of pool including sand removal and equipment connection (standard access, level site
– added cost if limestone encountered)
9. Delivery of pool within metro area
10. Crane to 32m’s
11. Council and Watercorp approvals
12. Full handover / demonstration of pool and equip including water balance at completion
| NAME | LENGTH | WIDTH |
|---|---|---|
| 320 | 3.0m | 2.0m |
| 450 | 4.5m | 2.0m |
| 620 | 6.0m | 2.0m |
Specifications
| NAME | LENGTH | WIDTH |
|---|---|---|
| Bali Plunge | 3.1m | 3.1m |
| 625 Plunge | 6.0m | 2.5m |
| – | ||
Specifications
